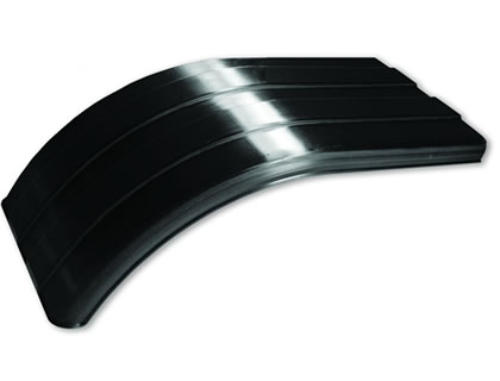

Ultem 9085 Image
ULTEM 9085 High Performance Material
Full Name: polyetherimide Colours: tan or black Layer Thickness: 0.013 inch (0.330 mm), and 0.010 inch (0.254 mm) Support Structure: BASS Tensile Strength: 10,390 psi (72 MPa) Tensile Elongation: 5.9% Flexural Stress: 16,700 psi (115 MPa) ZOD Impact, notched: 2.0 ft-lb/in (106 J/m) Heat Deflection: 333°F (167°C)
Click to enlarge
ULTEM 9085 is a flame retardant high performance thermoplastic for direct digital manufacturing and rapid prototyping. It is ideal for the transportation industry due to its high strength-to-weight ratio and its FST (flame, smoke, and toxicity) rating.
Material Benefits
FST (flame, smoke, toxicity) certified termoplastic. High heat and chemical resistance; highest tensile and flexural strength. Ideal for commercial transportation applications in airplanes, buses, trains, boats, etc.
Material Properties
Data Sheet Download
Form Fit and Function End Use Parts
